Drilling Sizes

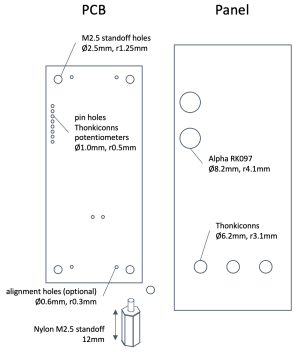

For drilling the pads I have found I typically use:
| Feature | Diameter (+/- 0.1mm) |
|---|---|
| Registration pins | 0.6mm |
| Small components | 0.8mm |
| Via holes | 0.8mm |
| Chips, pots, connectors | 1.0mm |
| Board stand-offs | 2.5mm |
