EDU Labor connects

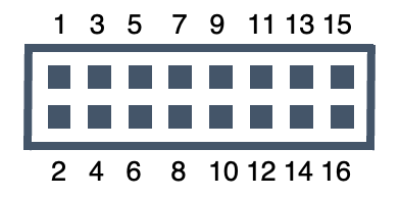

Top Row Connections
Pot & Socket
| Pot | Socket |
| CCW | 3 + 5 | Lug | 3 + 5 |
| Wiper | 7 + 9 | Tip | 7 + 9 |
| CW | 11 + 13 | |
Switches
| Button | SP | DP |
| Contacts 1+2 | 3 | Up | 9 | Up | 7 |
| Contacts 3+4 | 11 + 13 | Down | 7 | Center | 3 |
| | Common | 11 + 13 | Down | 9 |
| | Common | 11 + 13 |
Bottom Row Connections
Pot & Socket
| Pot | Socket |
| CCW | 4 + 6 | Lug | 4 + 6 |
| Wiper | 8 + 10 | Tip | 8 + 10 |
| CW | 12 + 14 | |
Switches
| Button | SP | DP |
| Contacts 1+2 | 4 | Up | 10 | Up | 8 |
| Contacts 3+4 | 12 + 14 | Down | 8 | Center | 4 |
| | Common | 12 + 14 | Down | 6 |
| | Common | 12 + 14 |
