Potentiometer wiring

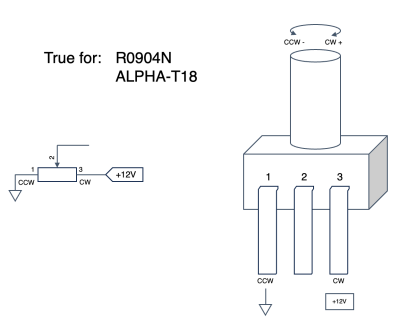

I can't count the times I've gotten confused and placed a pot on a front panel only to find I reversed it so turning clockwise has the opposite effect! Here is a graphic to try and keep it sorted out:
